Leveling machine leveling accuracy, sheet straightening machine, punching machine
In order to ensure the leveling accuracy of the leveling machine, the diameter of the leveling roller is not large. When the material width is too large, most of the flattening coils have a certain curvature, not a flat shape.
Especially for diagonally twisted coils, it is impossible to level. For the above defects, Ruihui leveling machine is equipped with an auxiliary leveling roller set when the width exceeds 300mm. The center of the upper and lower auxiliary rollers is in the vertical direction. Arranged in a misplaced manner.
The flattening roller acts as a reinforcing support to avoid deformation of the leveling roller and increase the downforce when the leveling machine is leveled, and the auxiliary roller can be freely adjusted directly through the adjusting wheel fixed on the upper template, thereby ensuring Can level all kinds of irregular coils.
When the leveling machine with the auxiliary leveling roller is used, the flattened material is flattened with the upper roller and the lower roller on the roller bracket, and then enters the auxiliary leveling roller, and the auxiliary leveling roller is further flattened.
If the flattened web is not completely flat, the adjustment device fixed to the upper template can be adjusted to achieve complete flatness.
The adjustment process is as follows: rotating the adjusting wheel to drive the spring to rotate, and because the vertical position of the spring is fixed, the adjusting rod that drives the rotating sleeve moves up and down.
The adjustment further drives the one or both ends of the adjustment sliding block to move up and down, so that the roller slider fixed with the auxiliary driving the flattening roller changes the vertical relative position of the two ends to achieve a completely flattening effect.
Products:
Specification:

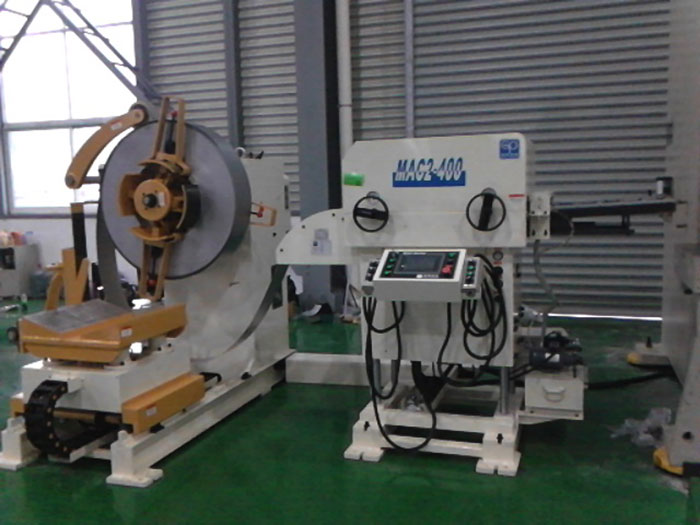

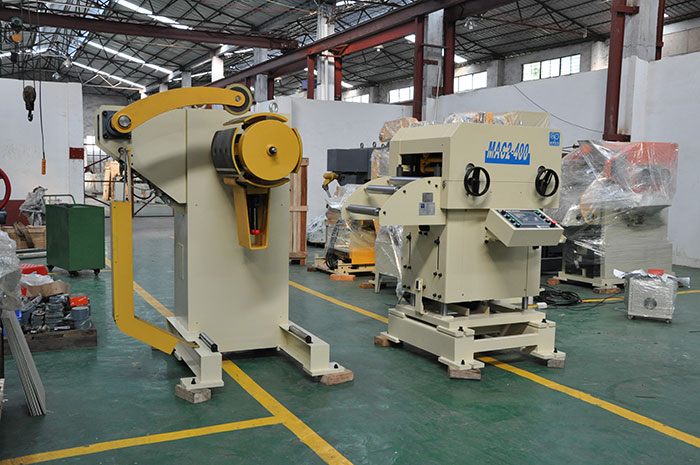

| Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 |
| Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 |
| Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 |
| Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |
| Coil I.D.(mm) | 8 | 8 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 |
| Work Roll Number(pieces) | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 |
| Feed Roll Number(set) | 1 | 1 | 1 | 1 |
| Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic |
| Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power(V) | 3 Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straigtening performance:
| tock Thicknees (mm) | Stock Width (mm) |
| 0.3 | 400 | 500 | 600 | 800 |
| 0.4 |
| 0.6 |
| 0.8 |
| 1.0 |
| 1.2 |
| 1.4 |
| 1.6 | 470 | 470 |
| 1.8 | 400 | 400 |
| 2.0 | 360 | 360 |
| 2.3 | 300 | 300 | 300 | 300 |
| 2.5 | 230 | 230 | 230 | 230 |
| 2.8 | 150 | 150 | 150 | 150 |
| 3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
