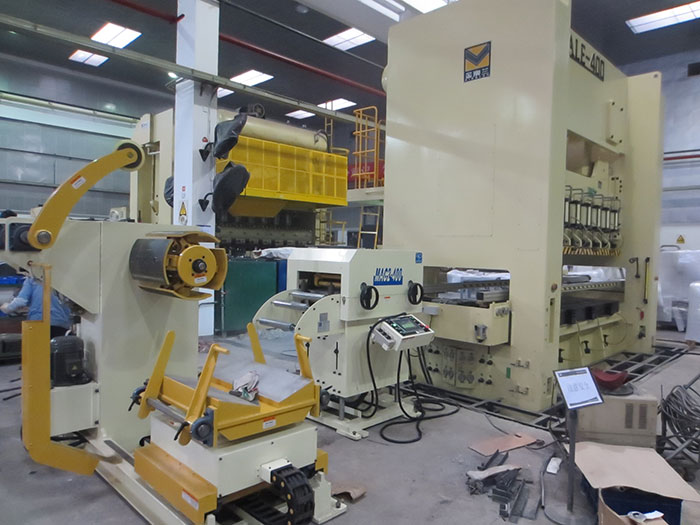

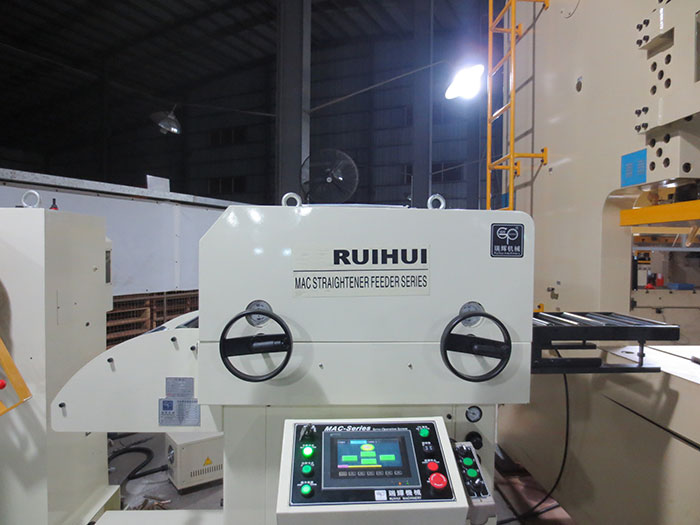

Roll processing, precision leveling machine, stamping automatic feeder
With the rapid development of stamping processing, the thickness and strength of the customer's coil material has been greatly improved, and many customers have a thickness of more than 3.0 mm.
At this time, the use of precision leveling machines and half-type leveling machines that are common in the market can not achieve the actual effect. The thick plate leveling machine is a new type of leveling machine developed to solve the difficulty of flattening the thick plate materials of customers.
Thick plate leveling machine operation method:
1. First open the feed flattening cylinder so that the feed flattening roller is in the raised position, and then open the feed compacting cylinder to the relaxed position. The worm gear fine adjustment device is adjusted so that the upper and lower rollers are slightly apart from each other by a certain distance.
2. Put the material material head into the feeding flattening roller and press the flattening cylinder. After the material is bent and straightened, the flattening cylinder is opened to feed the material forward to the feeding roller, and the pressing gas is pressed to make the material.
The roller presses the material, and at this time, the electric control box changeover switch is switched to the manual position, and the material is slowly fed according to the inching button.
Products:
Specification:
| Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 |
| Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 |
| Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 |
| Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |
| Coil I.D.(mm) | 8 | 8 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 |
| Work Roll Number(pieces) | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 |
| Feed Roll Number(set) | 1 | 1 | 1 | 1 |
| Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic |
| Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power(V) | 3 Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straigtening performance:
| tock Thicknees (mm) | Stock Width (mm) |
| 0.3 | 400 | 500 | 600 | 800 |
| 0.4 |
| 0.6 |
| 0.8 |
| 1.0 |
| 1.2 |
| 1.4 |
| 1.6 | 470 | 470 |
| 1.8 | 400 | 400 |
| 2.0 | 360 | 360 |
| 2.3 | 300 | 300 | 300 | 300 |
| 2.5 | 230 | 230 | 230 | 230 |
| 2.8 | 150 | 150 | 150 | 150 |
| 3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
